225CS-017 – 40 BHP
UAV Propulsion System 2kW Starter Generator

The world-class 225CS – 40 BHP rotary engine that delivers market-leading performance in terms of power, weight, efficiency and reliability. Combining all the advantages of a Wankel rotary engine with our patented Compact SPARCS cooling system, you benefit from a clean and powerful engine that offers low total cost of ownership.

225CS-017 – 40 BHP <br/>UAV Propulsion System <span>2kW Starter Generator</span>
Weight Engine Core Weight 22 lb
(10 kg)
Power Engine Power Output 40 bhp
(30 kW)
Generator Generator 2 kW
Fuel Type Fuel Type Gasoline
TBO Time Between Overhaul 500+
hrs
Cooling Cooling System Liquid-Cooled
Patented SPARCS

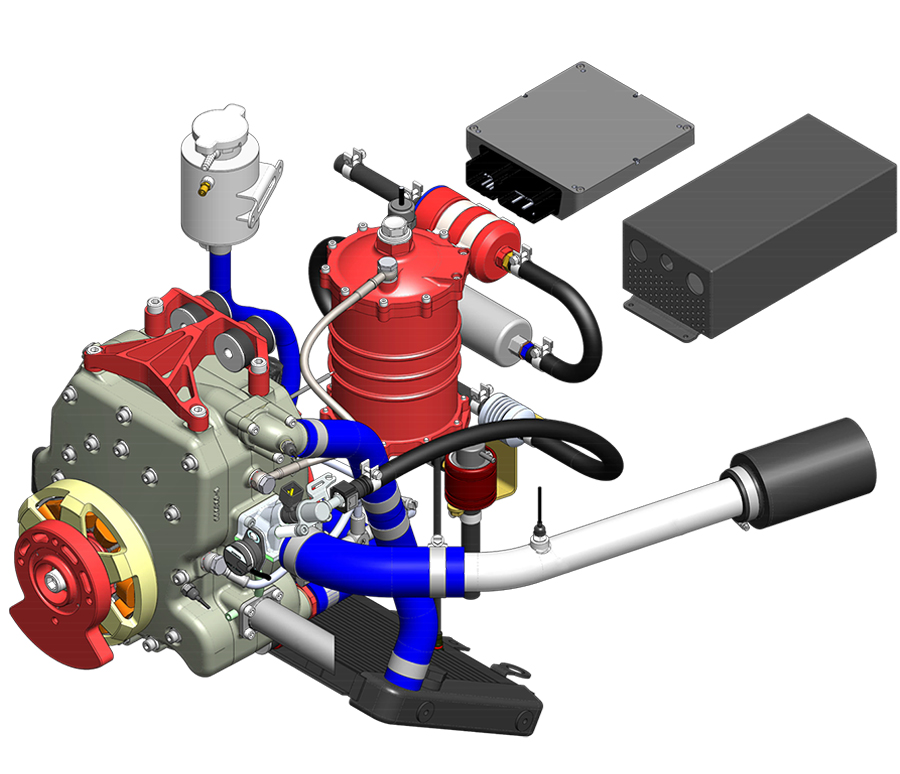

Interative detailing of 40 BHP UAV Propulsion System

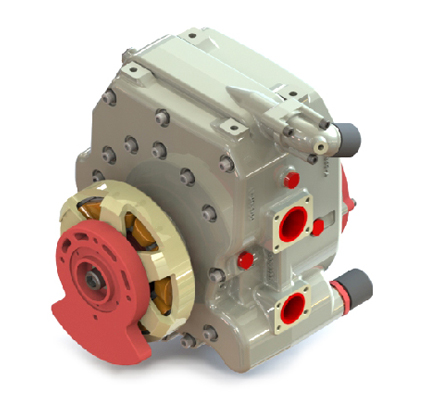

Core Engine & Generator OF 225CS-017 – 40 BHP UAV Propulsion System
Core Engine & Generator OF 225CS-017 – 40 BHP UAV Propulsion System

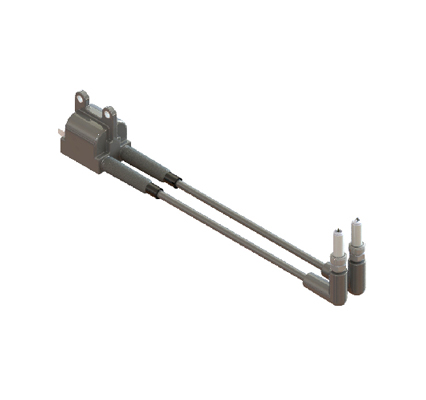

Ignition System OF 225CS-017 – 40 BHP UAV Propulsion System
Ignition System OF 225CS-017 – 40 BHP UAV Propulsion System

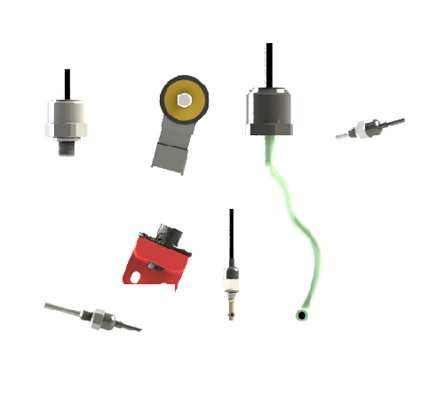

Sensor System OF 225CS-017 – 40 BHP UAV Propulsion System
Sensor System OF 225CS-017 – 40 BHP UAV Propulsion System

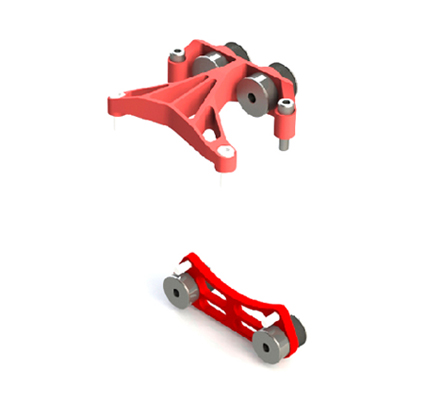

Mounting System OF 225CS-017 – 40 BHP UAV Propulsion System
Mounting System OF 225CS-017 – 40 BHP UAV Propulsion System

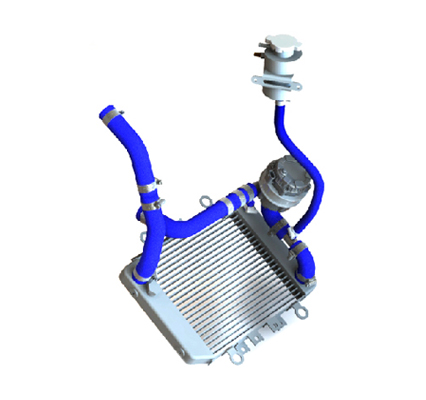

Cooling System OF 225CS-017 – 40 BHP UAV Propulsion System
Cooling System OF 225CS-017 – 40 BHP UAV Propulsion System

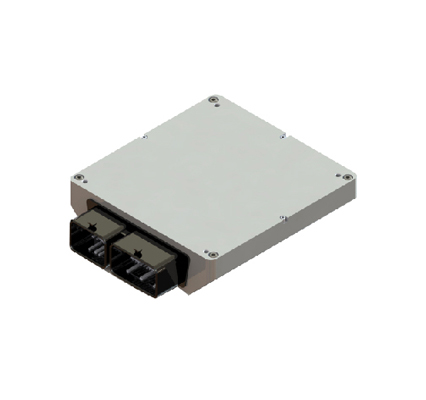

ECU OF 225CS-017 – 40 BHP UAV Propulsion System
ECU OF 225CS-017 – 40 BHP UAV Propulsion System

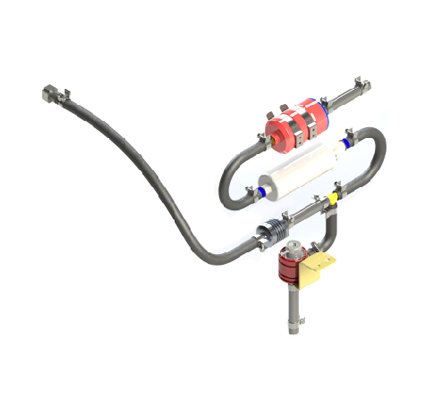

Fuel System OF 225CS-017 – 40 BHP UAV Propulsion System
Fuel System OF 225CS-017 – 40 BHP UAV Propulsion System

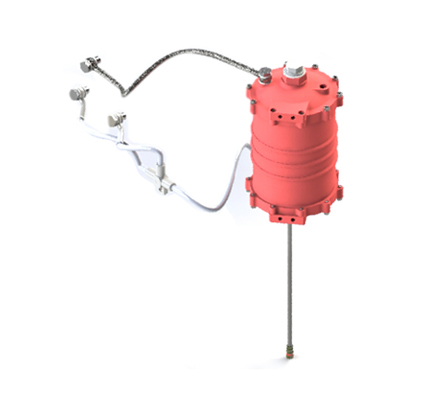

Oil System OF 225CS-017 – 40 BHP UAV Propulsion System
Oil System OF 225CS-017 – 40 BHP UAV Propulsion System

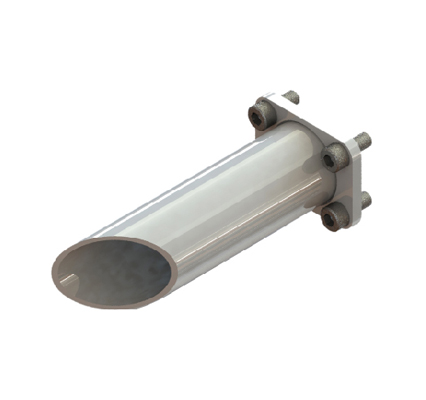

Exhaust System OF 225CS-017 – 40 BHP UAV Propulsion System
Exhaust System OF 225CS-017 – 40 BHP UAV Propulsion System

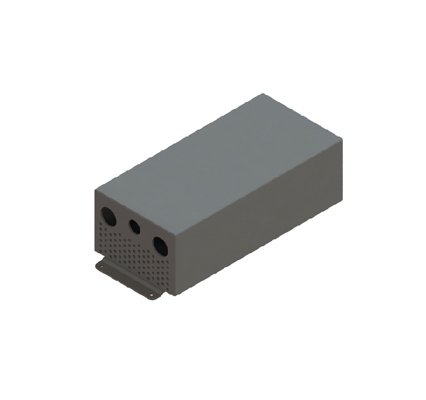

Power Management Unit OF 225CS-017 – 40 BHP UAV Propulsion System
Power Management Unit OF 225CS-017 – 40 BHP UAV Propulsion System

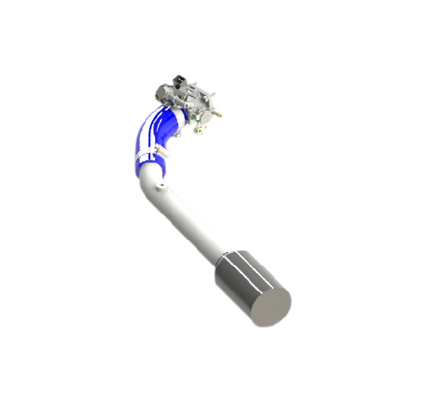

Induction System OF 225CS-017 – 40 BHP UAV Propulsion System
Induction System OF 225CS-017 – 40 BHP UAV Propulsion System

Engine Ancillary Details for 225CS

Core Engine & Generator OF 225CS-017 – 40 BHP UAV Propulsion System
Core Engine & Generator OF 225CS-017 – 40 BHP UAV Propulsion System
Ignition System OF 225CS-017 – 40 BHP UAV Propulsion System
Ignition System OF 225CS-017 – 40 BHP UAV Propulsion System
Sensor System OF 225CS-017 – 40 BHP UAV Propulsion System
Sensor System OF 225CS-017 – 40 BHP UAV Propulsion System
Mounting System OF 225CS-017 – 40 BHP UAV Propulsion System
Mounting System OF 225CS-017 – 40 BHP UAV Propulsion System
Cooling System OF 225CS-017 – 40 BHP UAV Propulsion System
Cooling System OF 225CS-017 – 40 BHP UAV Propulsion System
ECU OF 225CS-017 – 40 BHP UAV Propulsion System
ECU OF 225CS-017 – 40 BHP UAV Propulsion System
Fuel System OF 225CS-017 – 40 BHP UAV Propulsion System
Fuel System OF 225CS-017 – 40 BHP UAV Propulsion System
Oil System OF 225CS-017 – 40 BHP UAV Propulsion System
Oil System OF 225CS-017 – 40 BHP UAV Propulsion System
Exhaust System OF 225CS-017 – 40 BHP UAV Propulsion System
Exhaust System OF 225CS-017 – 40 BHP UAV Propulsion System
Power Management Unit OF 225CS-017 – 40 BHP UAV Propulsion System
Power Management Unit OF 225CS-017 – 40 BHP UAV Propulsion System
Induction System OF 225CS-017 – 40 BHP UAV Propulsion System
Induction System OF 225CS-017 – 40 BHP UAV Propulsion System

Key Benefits

Clean and Compact

AIE's rotary engines incorporate a closed-loop dry-sump oil lubrication system. This system not only eliminates wet oil loss during operation but also reduced oil consumption overall reducing exhaust smoke and emissions in comparison with air rotor cooled engines.

Multi-fuel

All AIE's engine can operate on several fuels including Gasoline, AVGAS, JP-8 and Jet-A1. When configured for multifuel operation, AIE's engines also require no physical modification to the engine system when switching fuels.

Low vibration

A rotary engine is by nature, low vibration power units, with no reciprocating components and three power strokes per rotor revolution, mean power delivery is smoother with less torsional vibration.

Long endurance

Due to AIE's rotary engines fantastic thermal stability, long service intervals ability to operate over a wide range of altitudes and weather condition mission durations are determined by the requirements of the application and operator, not the engine.

Few moving parts

Rotary engines have two moving parts, the rotor and the eccentric shaft, by contrast, the average reciprocating engine has 40 moving parts. Less moving parts equals fewer wearing surfaces, better reliability.

High power-to-weight

By design, rotary engines have high power to weight ratios, the combination of three power strokes per rotor revolution and its continuous rotary motion as opposed to stop-start dynamics of a reciprocating engine give a significant advantage in regards to power density.

Low total cost of ownership

When combing all factor such as engine purchase price, operational costs and maintenance requirements the overall simplicity and reliability of an AIE rotary engine delivers an extremely low total cost of ownership in comparison to alternative technologies

Revolutionary cooling system

AIE patented SPARCS (Self-Pressurising-Air Rotor Cooling System) utilises pressurised gases from the combustion process as a medium for cooling in a sealed engine core, SPARCS provides AIE Wankel rotary engines with longer endurance and zero oil loss for increased performance

WORLD-CLASS ENGINES WITH A LONG AND PROUD DESIGN HERITAGE

With over 80 years' combined experience in engineering design and manufacture, AIE's heritage stretches back to the 1960s. We're market-leaders in the application of rotary engines and this means you won't find a more trusted or knowledgeable engine partner.

All our design, testing and manufacture is done in-house using state-of-the-art equipment. We'll manage your project from concept to end result and you'll benefit from world-class expertise and customer service.

PATENTED TECHNOLOGY GIVES YOU A POWERFUL, EFFICIENT ENGINE

The 225CS engine is a compact and lightweight engine making it easy to integrate into a wide range of applications. You'll benefit from a market-leading power to weight ratio with the 225CS generating 40bhp but weighing just 10 kg.

While other engines may exist they don't feature our patented Compact SPARCS cooling technology. Our revolutionary thermal balancing design means your engine is cleaner and more efficient and reduced wear and tear means that it will last longer. You won't have to repair or replace your engine as often and you'll benefit from a heavier payload carrying capacity and improved endurance.

SPECIFICATIONS

Engine Type Single Rotor
Power Output 40 bhp (30 kW)
Generator 2 kW
System Dry Weight 46.7 lb (21.2 kg)
Core Weight 22 lb (10 kg)
Fuel Type Gasoline
Cooling Liquid Cooled Patented SPARCS
Ignition System Twins Spark Plug
Engine Control System Full Electronic Engine Management
Oil System Digitally Optimized Lubrication
Configuration Pusher / Tractor
Torque 27 lb/ft @ 8000 rpm
Displacement 13.7 cu in (225cc)
power-torque-225CS

CORE ENGINE DIMENSIONS

225CS Dimensions
