650S – 120 BHP

The world-class 650S engine produces a stunning amount of power from a small, compact and easy-to-integrate unit. Perfect for use in UAVs/RPAS, sports motorcycles, high performance vehicles and as a range extender, this clean, efficient and economical engine is the result of 80 years of development, design and manufacturing experience.

650S – 120 BHP - Wankel Rotary Engine for UAVs, RPAS and as a range extender
Weight Engine Core Weight 77.16 lb
(35 kg)
Power Engine Power Output 120 bhp
(90 kW)
Fuel Type Fuel Type AVGAS/Gasoline
Heavy Fuels
TBO Time Between Overhaul 500+
hrs
Cooling Cooling System Liquid-Cooled
Patented SPARCS
AIE have over 80 year's experience in engine design and manufacture and when you speak to us you know you're talking to global experts with unrivalled expertise and knowledge. Keep reading to find out more about the 650S engine and some of its applications. Or, to find out how we can help you, call AIE today on +44 1543 420700.

Benefits of Wankel Rotary Engines

  • Clean and Compact
  • Multi-fuel
  • Low vibration
  • Long endurance
  • Few moving parts
  • High power-to-weight
  • Low total cost of ownership
  • Revolutionary cooling system

WORLD-CLASS POWER FROM A LONG-LASTING, RELIABLE ENGINE

All our engines feature patented SPARCS cooling technology to give you better performance and a longer-lasting engine. With a market-leading power to weight ratio and a compact design for easy integration, we'll help design and build the right solution for you.

THE PERFECT ENGINE FOR DEMANDING ENVIRONMENTS

If you need an engine with unrivalled endurance, world-class power and a low total cost of ownership, the 650S is ideal for you. By combining our patented Compact SPARCS cooling system with a modern rotary engine you benefit from an engine which is reliable, efficient and long-lasting. And, because the 650S is compact and lightweight it's easier to integrate into your application. It will also give improved performance through being lighter and more aerodynamic.

A WORLD-CLASS ENGINE FOR UAV, MOTORCYCLE AND ELECTRIC VEHICLE APPLICATIONS

Generating unrivalled power from a small engine that is easy to integrate, the 650S has a wide range of practical applications. It is the perfect engine for:

automotive

Automotive

  • Low Carbon Vehicles
  • Unmanned Ground Vehicles
  • Niche Vehicles & Motorsports
aerospace

Aerospace

  • Light Aviation
  • Medium-Large UAVs
  • Hybrid-electric Propulsion
marine

Marine

  • Hybrid-electric Propulsion
  • High-Performance Watercraft
  • Unmanned Maritime Systems

SPECIFICATIONS

Engine Type Single Rotor
Displacement 40 cu in (650cc)
Torque 80 lb/ft @ 8000 rpm
Compression Ratio 9.6:1
Fuel Type AVGAS / Gasoline / Heavy Fuels
Power Output 120 bhp (90 kW)
Weight 77.16 lb (35 kg) Core Weight
Cooling Liquid Cooled Patented SPARCS
Ignition System Multiple Spark Plug
Generator Optional
Engine Control System Full Electronic Engine Management
Oil System Digitally Optimized Lubrication
Configuration Pusher / Tractor
TRL/MRL Level 5/4

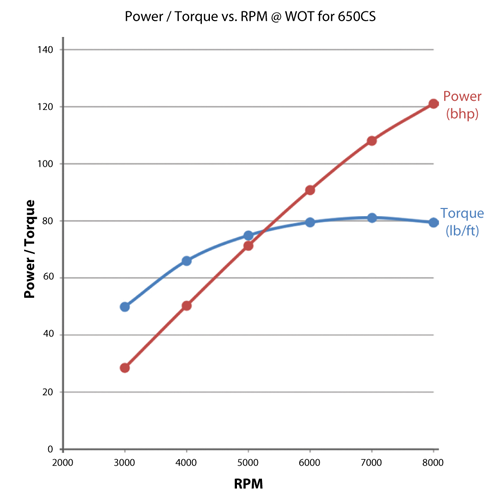

power-torque-650S

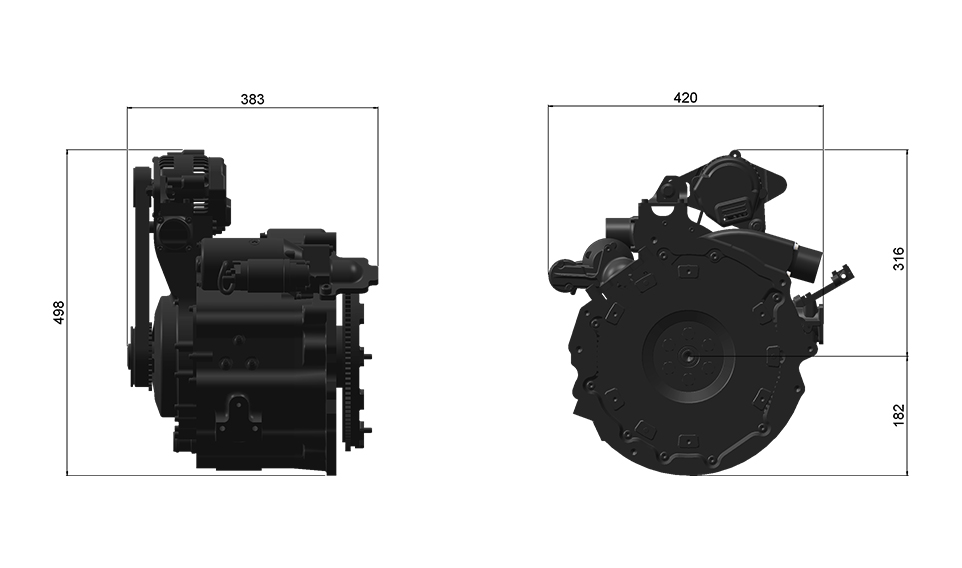

ENGINE DIMENSIONS

650 Dimensions
