40S – 5 BHP

The world-class 40S engine is the result of over 80 year’s combined engineering experience. Delivering superior performance, it combines a modern rotary engine with patented SPARCS cooling technology for unrivalled performance and economy.

40S - 5BHP - Wankel Rotary Engine patented SPARCS technology for Hybrid Propulsion and Small UAVs
Weight Engine Core Weight 4.4 lb
(2 kg)
Power Engine Power Output 5 bhp
(3.7 kW)
Fuel Type Fuel Type AVGAS/Gasoline
Heavy Fuels
TBO Time Between Overhaul 500+
hrs
Cooling Cooling System Liquid-Cooled
Patented SPARCS
SFC Fuel Consumption 0.51 - 0.57 lb/bhp/hr
(310 - 350 g/kWh)
Our engines give you unrivalled performance in terms of power, weight, efficiency and capability. When you choose an AIE engine you're getting all the benefits of a Wankel rotary engine - more power, less weight, fewer vibrations - combined with the advantages of our patented SPARCS cooling system.

Key Benefits

  • Clean and Compact
  • Multi-fuel
  • Low vibration
  • Long endurance
  • Few moving parts
  • High power-to-weight
  • Low total cost of ownership
  • Revolutionary cooling system

EFFICIENT AND RELIABLE WITH MARKET-LEADING PERFORMANCE

All AIE engines give you market-leading performance in terms of power, weight, efficiency and reliability.

Whatever your application, we specialise in conceptualising and designing products and seeing your project through the prototype, testing and manufacture stages. You'll benefit from the advice of global experts, patented technology and world class engineering facilities.

LIGHTWEIGHT AND POWERFUL - THE PERFECT SMALL ENGINE

The 40S is a small and compact engine that delivers a market-leading power to weight ratio. By integrating a modern rotary engine with our revolutionary SPARCS cooling system you benefit from an engine which is reliable, efficient and powerful.

Patented SPARCS technology means your engine is lighter, will use less oil and will last longer. This means that the total cost of ownership is reduced and you get a larger payload capacity and improved endurance. And, because it is such a small engine it's easier to integrate into your application and gives you improved performance through being lighter and more aerodynamic.

THE IDEAL ENGINE FOR UAV AND SMALL RANGE EXTENDER APPLICATIONS

The 40S boasts a superb power to weight ratio in a compact and easy to integrate engine. This makes it suitable for a range of applications including:

automotive

Automotive

  • Series-hybrid Powertrains
  • Automotive Range Extenders
  • Unmanned Ground Vehicles
aerospace

Aerospace

  • Small Tactical UAVs
  • Hybrid Propulsion
  • Auxiliary Power Units
marine

Marine

  • Near-silent Watercraft
  • Unmanned Surface Vehicles
  • Hybrid-electric Gensets

SPECIFICATIONS

Engine Type Single Rotor
Displacement 2.4 cu in (40cc)
Torque 2.75 lb/ft @ 8000 rpm
Compression Ratio 9.6:1
Fuel Type AVGAS / Gasoline / Heavy Fuels
Power Output 5 bhp (3.7 kW)
Weight 4.4 lb (2 kg) Core Weight
Fuel Consumption 0.51 - 0.57 lbs/bhp/hr (310 - 350 g/kWh)
Cooling Liquid Cooled Patented SPARCS
Ignition System Single Spark Plug / CDI
Generator Optional
Engine Control System Full Electronic Engine Management
Oil System Digitally Optimized Lubrication
Configuration Pusher / Tractor
TRL/MRL Level 6/6

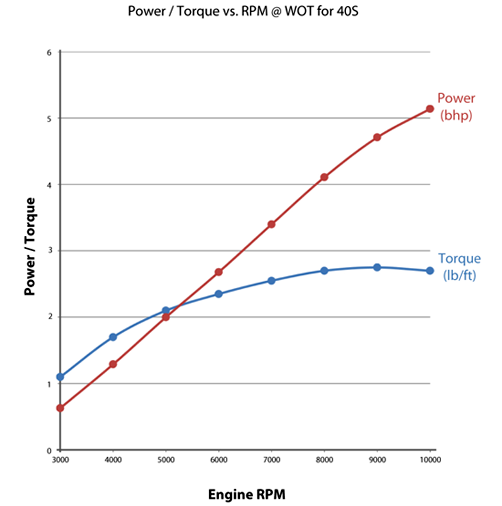

power-torque-40S

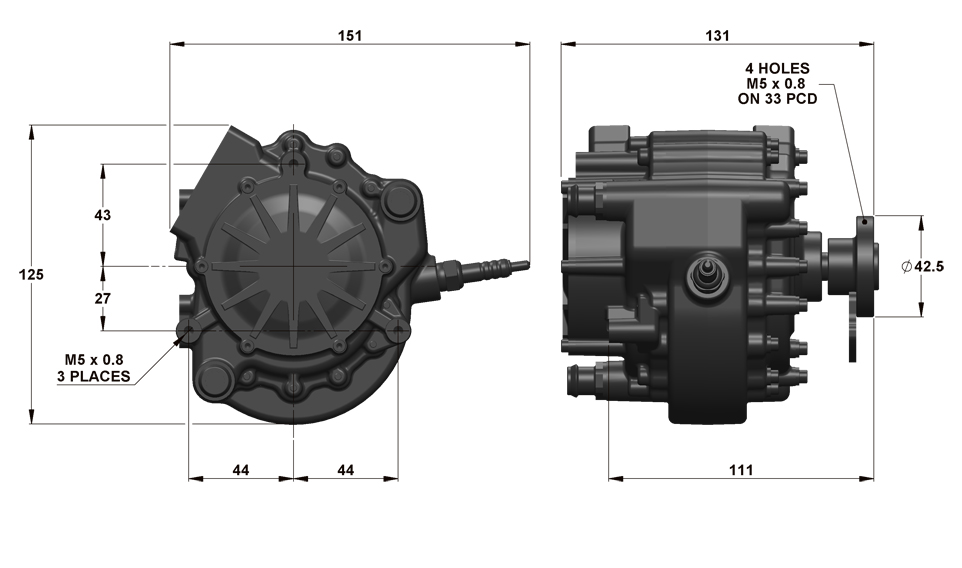

ENGINE DIMENSIONS

40S_Dimensions
